Tractor Mounted Sprayers
More than thirty-five years in history of agricultural mechanization make BARGAM one of the most well-known European spraying, weeding and land working machines manufacturer.

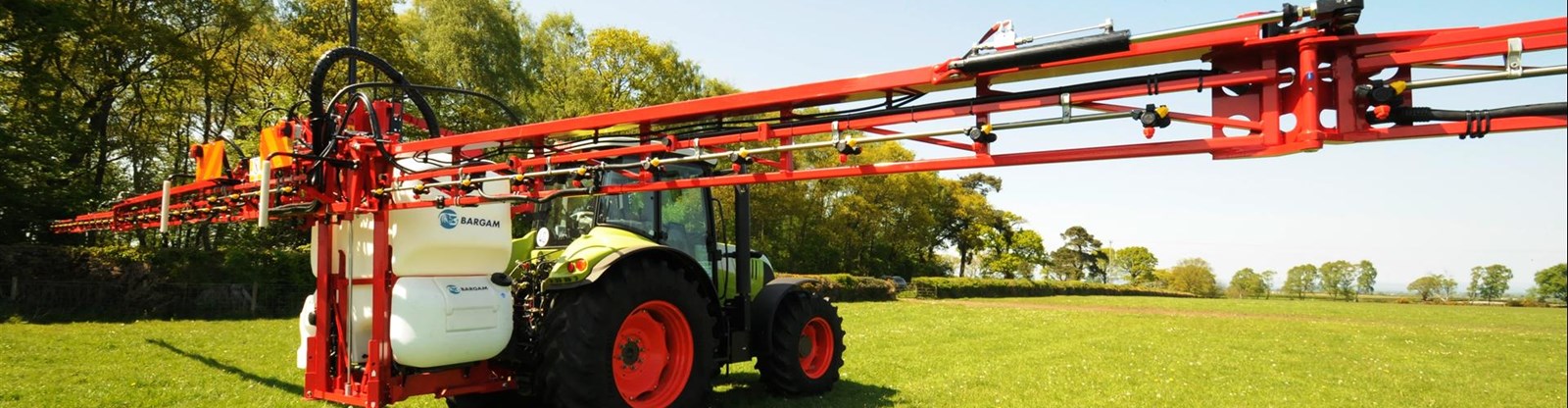

SUPER BDL RANGE
The Super BDL range is our heavy duty tractor mounted sprayer, with tank sizes of 1300 & 1600 litres. The BDL hydraulic ‘gullwing’ folding boom is available 18m to 28m.
With its heavy duty frame and ‘A’ Frame attachment to the tractor, there is no other tractor mounted machine as sophisticated and Strong. Triple jets are mounted on stainless steel spray lines, the boom frame totally encloses the nozzle body giving total nozzle protection. The 18m boom folds out 10m and then to 18m. The 20/21/24m booms fold to 12m and then to full width, the 28m boom folds to 13m. Pigtail springs “kick” the boom ends up if the operator makes a mistake and hits the crop. Hydraulic boom tilt for working on side sloping ground is available.
Boom ‘airo’ suspension, a unique system that carries the whole weight of the boom on air cushions to give an unequalled boom ride. All BDL booms can be offered with independent folding and full boom geometry, on request. All Super BDL sprayers are fitted with chemical mixer tank (which lowers down to a suitable working height when filling), container washers, in field tank cleaning system, self filler hose, ‘A’ frame linkage and full electric controls as standard. Computer rate controller, Foam marker or GPS navigation, Line purge, Boom air suspension, Boom geometry and independent fold are optional.
All Bargam booms have very strong hinge pins, ram attachments and moving parts. All moving parts have a grease point with a bright bar pin through a bushed hole. A feature that not all manufacturers have.
- 1300ltr or 1600ltr Total Emptying Tank
- Heavy Duty Painted Chassis
- A Frame attachment to tractor
- Full Rinse System
- Tank Washers
- Full Electric Controls
- Tri Jets
- Stainless Steel Lines
- Line Filters
- Road Lighting Kit
- 6 Cyl 250lt/min Diaphragm Pump 180lt/min on 20/21m)
- Chemical Induction Hopper
- Hand Wash
- Clothing Locker
- End Jet Protection Panels
- Boom Protection Springs
- Telescopic legs for dismounting at working height
- Requires 2 Spool Valves (1 spool when fitted with electro Hydraulics)
- NSTS Test
- Arag Bravo 180s Rate Controller
- GPS speed sensor for Bravo 180s
- Arag Bravo 400s Rate Controller GPS Section Control
- Arag Bravo 400s Rate Controller GPS Seletron (single)
- Arag Bravo 400s Rate Controller GPS Seletron (twin)
- Tank Level Sensor (ARAG)
- Electro Hyd Tilt for tractors without 3 spool valves
- Hyd Boom Tilt
- Foam Marker
- Line Purge Boom Recirculation System
- NSTS Test
- Auto boom height control (tilt and main lift)
- Variable Boom Geometry (This includes electro hydraulics for all boom functions on the sprayer)
- Airo Boom Suspension for 20/21m
- Airo Boom Suspension for 24m
SUPER BDU PLUS
The Super BDU range is our heavy duty tractor mounted sprayer, with tank sizes of 1300 & 1600 litres. The BDU hydraulic ‘rear’ folding boom is available 20m to 30m.
With its heavy duty frame and ‘A’ Frame attachment to the tractor, there is no other tractor mounted machine as sophisticated and Strong. Triple jets are mounted on stainless steel spray lines, the boom frame totally encloses the nozzle body giving total nozzle protection. Pigtail springs “kick” the boom ends up if the operator makes a mistake and hits the crop. Hydraulic boom tilt for working on side sloping ground is standard.
A hydraulic accumulator can be added to carry the whole weight of the boom to give an unequalled boom ride. All BDU booms have independent folding and full boom geometry as STANDARD. All Super BDL sprayers are fitted with chemical mixer tank (which lowers down to a suitable working height when filling), container washers, in field tank cleaning system, self filler hose, ‘A’ frame linkage and full electric controls also as standard. Computer rate controller, Foam marker or GPS navigation, Line purge are options.
All Bargam booms have very strong hinge pins, ram attachments and moving parts. All moving parts have a grease point with a bright bar pin through a bushed hole. A feature that not all manufacturers have!
- 1300ltr or 1600ltr Total Emptying Tank
- Heavy Duty Painted Chassis
- A Frame attachment to tractor
- Full Rinse System
- Tank Washers
- Full Electric Controls
- Tri Jets
- Stainless Steel Lines
- Line Filters
- Road Lighting Kit
- 6 Cyl 250lt/min Diaphragm Pump (180lt/min on 20/21m)
- Chemical Induction Hopper
- Hand Wash
- Clothing Locker
- End Jet Protection Panels
- Boom Protection Springs
- Hydraulic Tilt
- Hydraulic Accumulator Boom Suspension
- Pallet Tine lifting locators
- Requires 1 Spool Valves with constant oil flow
- Arag Bravo 180s Rate Controller
- GPS speed sensor for Bravo 180s
- Arag Bravo 400s Rate Controller GPS Section Control
- Arag Bravo 400s Rate Controller GPS Seletron (single)
- Arag Bravo 400s Rate Controller GPS Seletron (twin)
- Tank Level Sensor (ARAG)
- Foam Marker
- Line Purge Boom Recirculation System
- NSTS Test
- Flashing Beacon and Boom flood light kit
- Auto boom height control (tilt and main lift) ARAG
- Variable Boom Geometry (This includes electro hydraulics for all boom functions on the sprayer)
Special BDL Range
The Special BDL sprayer is a very popular sprayer, with tank sizes of 1100 & 1300 litres. The BDL hydraulic folding boom is available 18m to 24m with triple jets mounted on stainless steel boom lines, the boom frame totally encloses the nozzle body giving total nozzle protection.
The 15 – 18m boom has 2 stage folding out 10m and then to 15 – 18m. The 20/21/24m booms fold to 12m and then to full width and pigtail springs “kick” the boom ends up if the operator makes a mistake.
Boom airo suspension is optional, it is a unique system, that carries the whole weight of the boom on air cushions to give an unequalled boom ride.
All BDL booms can be offered with independent folding and full boom geometry, on request.
Special BDL sprayers are all fitted with chemical mixer tank (which lowers down to a suitable working height when filling), container washers, in field tank cleaning system, self filler hose, quick attach lower linkage and full electric controls as standard.
Computer, Foam marker, Line purge, Boom air suspension, Boom geometry and independent fold are optional.
- 1000ltr or 1300ltr Total Emptying Tank
- Strong Painted Chassis & Frame
- Full Rinse System
- Tank Washers
- Full Electric Controls
- Tri Jets
- Stainless Steel Lines
- Line Filters
- Road Lighting Kit
- 4 Cyl 180lt/min Diaphragm Pump
- Quick Attach Lower linkage
- Chemical Induction Hopper
- Hand Wash
- Clothing Locker
- End Jet Protection Panels (standard for 2011)
- Requires 2 Spool Valves (1 spool when fitted with electro Hydraulics)
- BRAVO 180 Spray Computer
- BRAVO 400 Spray Computer with Full GPS
- Hyd Boom Tilt
- Electro Hyd Boom Tilt
- Variable Boom Geometry
- (includes electro hydraulics for all boom functions on the sprayer)
- Airo Boom Suspension (for 18 to 21m boom)
- Airo Boom Suspension (for 24m boom)
- Foam Marker
- GPS Guidance System (Mapping with colour screen)
- Bubble Jets per metre
- Line Purge Boom Recirculation system
Special BDU
The Special BDU sprayer is a very popular sprayer, with tank sizes of 1100, 1300 & 1600 litres. The BDU hydraulic rear folding boom is available 18m to 21m with triple jets mounted on stainless steel boom lines, the boom frame totally encloses the nozzle body giving total nozzle protection.
Hydraulic accumulator suspension is optional, all BDU booms can be offered with independent folding on request.
Special BDU sprayers are all fitted with chemical mixer tank (which lowers down to a suitable working height when filling), container washers, in field tank cleaning system, self filler hose, quick attach lower linkage and full electric controls as standard.
Computer, Foam marker, Line purge, Boom air suspension, Boom geometry and independent fold are optional.
- 1000ltr or 1300ltr or 1600ltr Total Emptying Tank
- Strong Painted Chassis & Frame
- Full Rinse System
- Tank Washers
- Full Electric Controls
- Tri Jets
- Stainless Steel Lines
- Line Filters
- Road Lighting Kit
- 4 Cyl 180lt/min Diaphragm Pump
- Quick Attach Lower linkage
- Chemical Induction Hopper
- Hand Wash
- Clothing Locker
- End Jet Protection Panels (standard for 2011)
- Requires 2 Spool Valves (1 spool when fitted with electro Hydraulics)
- Rear Folding Booms from 18 to 21m
- BRAVO 180 Spray Computer
- BRAVO 400 Spray Computer with Full GPS
- Hyd Boom Tilt
- Electro Hyd Boom Tilt
- Variable Boom Geometry
- (includes electro hydraulics for all boom functions on the sprayer)
- Airo Boom Suspension (for 18 to 21m boom)
- Airo Boom Suspension (for 24m boom)
- Foam Marker
- GPS Guidance System (Mapping with colour screen)
- Bubble Jets per metre
- Line Purge Boom Recirculation system
Mec BDX
This model is a really well built economically priced tractor mounted hydraulic sprayer. It is available with a 12 or 15m rear folding boom, which is neat, compact and strong.
The sprayer chassis has a strong frame made from steel and has a very high quality paint job. The pump is a proven 3 cylinder 135 lpm unit from AR. (larger pump available). The tank is sunlight resistant and is designed so all the contents are used to the last drop, even when working on steep banks. This machine has everything needed to carry out a quality and accurate job. The standard specification is high so this is a real value for money machine.
- 800ltr to 1300ltr Total Emptying Tank NOW AVAILABLE WITH A 1500LT TANK!
- Strong Painted Chassis & Frame –
- Stainless Steel Lines
- Single nozzle bodies
- Electric On/Off with manual boom sections control unit
- 3cyl 135lt/min Pump
- Clean Water Rinse System
- Clothing Locker
- Hand Wash Tank
- Hydraulic folding boom
- Hydraulic Raise and Lower
- Chemical induction hopper
- Self-Filler
- System Washing Kit 120lt with Full Spec Cleaning System (standard for 2011)
- 5 Section Controls
- Full Nozzle Protection (standard for 2011)
- Full Electronic Controls
- BRAVO 180 Spray Computer
- Hyd Boom Tilt
- Electro Hyd Boom Tilt
- Foam Marker
- GPS Guidance System (Mapping with colour screen)
- Bubble Jets per metre
- Road lights
- Line Filters
- Trijets
