Bargam Trailed Sprayers
More than thirty-five years in history of agricultural mechanization make BARGAM one of the most well-known European spraying, weeding and land working machines manufacturer.

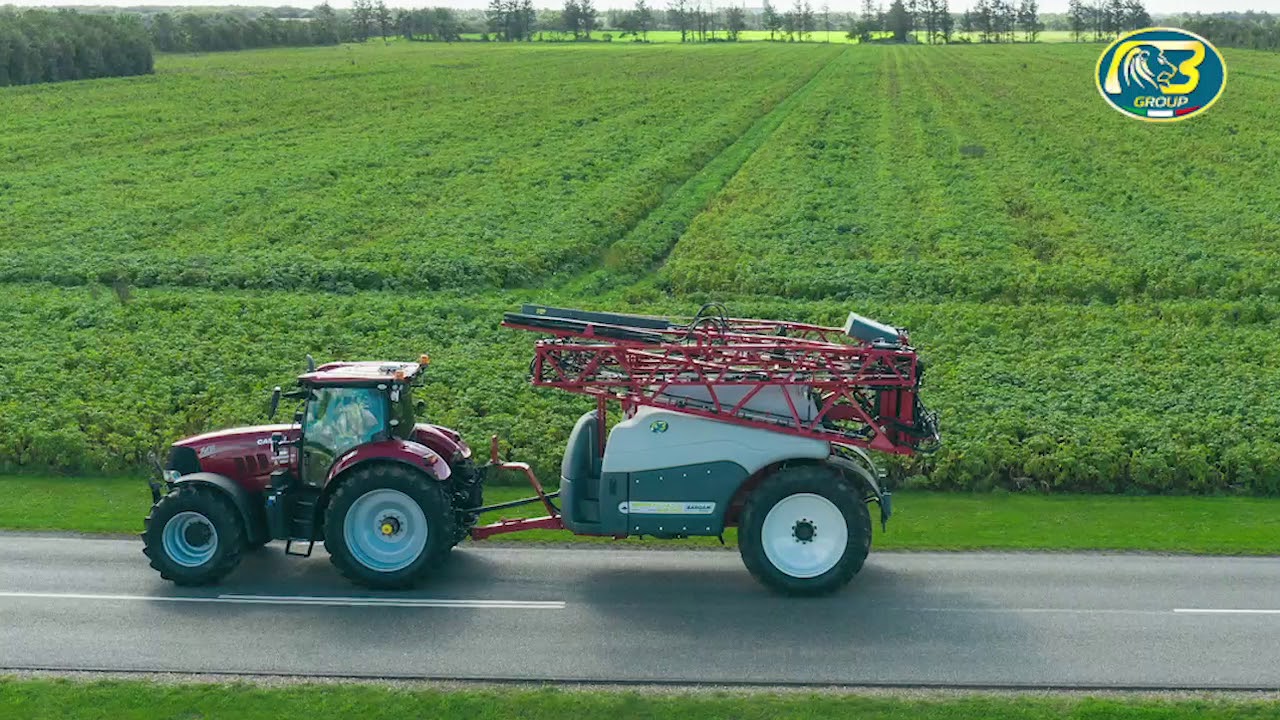

Spraymax Series
SPRAYMAX (2500-3500-4500)
BDL G-VAR (18-21-24m)
CURRENT TECHNICAL FEATURES:
- SINGLE HIGH RESISTANCE “H” BEAM
- GROUND CLEARANCE 700mm (WITH STANDARD WHEELS)
- SINGLE ARM PARALLELOGRAM LIFTING STROKE 1800 MM (ASSEMBLED ON SELFLUBRICATING BUSHINGS) SHOCK ABSORBER WITH NITROGEN ACCUMULATOR
- HYDRAULIC PARKING FOOT ACTIVATED BY MANUAL LEVER WITH DOUBLE-EFFECT PUMP AND INDEPENDENT TANK
- FIXED DRAWBAR WITH EYE D 40mm ADJUSTABLE HEIGHT
- FRONT CABLE HOLDER WITH MANUAL GAUGE D 100mm INTEGRATED
- nr 2 CHAINS FOR THE CABLES
- HIGH RESISTANCE POLIETHILENE TANKS
- CENTRALIZED AND INSPECTABLE ENTRY OF THE TUBES IN THE TANK IN THE UPPER SIDE OF THE TANK
- INTERNAL AGITATION WITH 10 AGITATORS (4500/5500/6500), 8 AGITATORS (2500/3500) POSITIONED ON 2 DIFFERENT HEIGHTS
- 2 BREAKWATER BULKHEAD (4500/5500/6500), 1 BREAKWATER BULKHEAD (2500/3500), IN STAINLESS STEEL AND WITH AGITATION BY BYPASS RETURN OF THE PUMP
- ELECTRONIC LEVEL INDICATOR (VISIBLE FROM THE SYNCRO ON THE SIDE OF THE MACHINE AND FROM THE MONITOR IN THE CAB)
- INTERNAL WASHING WITH 3 POWERFUL ROTARY NOZZLES
- 600 LT CLEAN WATER TANK
- 2 X HANDWASHING TANKS (RIGHT AND LEFT SIDE)
- 2 OPENING LADDERS (WITH STORAGE COMPARTMENTS) AND INTEGRATED IN THE SIDE COVERS, TO ACCESS THE PLATFORM FROM BOTH SIDES OF THE MACHINE
- LARGE DIMENSION CONTAINER HOLDER
- 2 SIDE COVERS WITH TOTAL COVERAGE AND VERTICAL OPENING
- PUMP “AR 380”
- ERGONOMIC AND COMPACT CENTRALIZED WATER FUNCTION CONTROL BOARD
- 3” SUCTION FILTER WITH 50 MESH CARTRIDGE
- SELF-CLEANING “T6” (1”1/2) LINE FILTER WITH 80 MESH INTERNAL CARTRIDGE
- SINGLE LINE FILTER “T6” (1 “1/2), WITH DOUBLE CARTRIDGE (80/100 MESH)
- QUICK COUPLING FOR FILLING HOSE FROM EXTERNAL SOURCE (2 ”CAM LOCK)
- WATER SYSTEM COMPONENTS WITH FORK HOOK (BALL VALVES, FILTERS AND FITTINGS)
- MIXING TANK (PRE-MIX) OF 35L WITH WASHING CAN SYSTEM, SPRING LOWERING AND CAN STORAGE AREA
- COMPUTER “BRAVO 400S” 7 WATER FUNCTIONS + 9 OIL FUNCTIONS, 5,7” COLOUR DISPLAY
- ELECTRICAL SYSTEM WITH ISOBUS CONNECTION
- “WOLF” FLOW METER WITH FLOW RATE FROM 10 TO 200 L / MIN
- HYDRAULIC FOLDING BOOM IN 5 SECTIONS WITH SIDE CLOSURE
- VARIABLE GEOMETRY (G / VAR), FOR THE INDEPENDENT INCLINE OF EACH BOOM HYDRAULIC CLOSING BOOM, WITH 1/2 “STAINLESS STEEL TUBES (D 21mm) WITH 7 POWER SUPPLIES AND PVC TUBE D 19mm
- 7 WATER SUPPLIES (PVC HOSE D 19 mm)
- MANIFOLD TO BLEED THE RESIDUAL PRESSURE ON SECTION SUPPLY HOSES, FOR REDUCING DRIPPING
- STAINLESS STEEL (1/2’’ THREAD, D 21 mm) JETS HOLDER PIPES – 10 mm Ø HOLES WITH 500 mm DISTANCE
- 4-WAYS COMPACT JET AIR INDUCTION NOZZLE “T-AIXR” 110 04 (RED)
- SPRING END BOOM PROTECTION KIT
- REAR CENTRALIZED PANEL FOR WATER SECTION VALVES AND ELECTRO-HYDRAULIC CONTROLS
- HIGH RESISTANCE TERMINAL JET PROTECTION IN POLYETHYLENE
- 2 BLUE LED WORK LIGHTS ON THE BAR THE BLUE LIGHT IN SPOTS TO VERIFY THE CORRECT OPERATION DURING THE NIGHT
- 2 WHITE LED WORKING LIGHTS MOUNTED ON THE LIFT FOR THE LIGHTING OF WORKING AREAS DURING THE NIGHT
- LED FLASHING LIGHT, COMPACT AND REDUCED DIMENSIONS
- JUG FOR NOZZLE CONTROL, WITH GRADUATED SCALE IN ACCORDANCE WITH ISO / DIS 16119
- HYDRAULIC BLOCK WITH 9-FUNCTION HYDRAULIC SOLENOIDS (WITH COMPENSATED HEAD AND ARRANGED LOAD SENSING L / S FOR TRACTORS WITH VARIABLE FLOW PUMP) 4 BOOM FUNCTIONS, 2 “G / VAR” FUNCTIONS, LIFTING, INCLINATION, LOCKING
- HYDRAULIC HOSES WITH QUICK COUPLING TO THE TRACTOR DISTRIBUTOR (1 DOUBLE EFFECT)
- HYDRAULIC HOSE FOR TRACTOR WITH LOAD SENSING “L / S” DISTRIBUTOR”
- WHEELS 300/95 R46 -12 4 R46- (1720 X 310mm) ALLIANCE PROFILE A-350, 10 HOLES AND WELDED FLANGE SP 15mm
- FIX AXLE WITH SQUARE SHAPE EXTRACTABLE HUBS 100 MM, 10 HOLES M22x1,5
- WITHOUT BRAKES
- ADJUSTABLE TRACK 1500-1800mm (1800-2100m REVERSING WHEEL CENTRE) 2500/3500 WITH STANDARD WHEELS AND HUBS
- ADJUSTABLE TRACK 1570-1870mm (1880-2180m REVERSING WHEEL CENTRE) 4500/5500/6500 WITH STANDARD WHEELS AND HUBS
- WIDE 600mm MUDGUARDS, ADJUSTABLE ACCORDING TO THE TRACK
- LED LIGHTS FOR ROAD CIRCULATION (INTEGRATED IN THE MUDGUARDS)
SPRAYMAX (4500-5500-6500)
BDL PLUS G-VAR (24-28m)
CURRENT TECHNICAL FEATURES:
- SINGLE HIGH RESISTANCE “H” BEAM
- GROUND CLEARANCE 700mm (WITH STANDARD WHEELS)
- SINGLE ARM PARALLELOGRAM LIFTING STROKE 1800 MM (ASSEMBLED ON SELFLUBRICATING BUSHINGS) SHOCK ABSORBER WITH NITROGEN ACCUMULATOR
- HYDRAULIC PARKING FOOT ACTIVATED BY MANUAL LEVER WITH DOUBLE-EFFECT PUMP AND INDEPENDENT TANK
- FIXED DRAWBAR WITH EYE D 40mm ADJUSTABLE HEIGHT
- FRONT CABLE HOLDER WITH MANUAL GAUGE D 100mm INTEGRATED
- nr 2 CHAINS FOR THE CABLES
- HIGH RESISTANCE POLIETHILENE TANKS
- CENTRALIZED AND INSPECTABLE ENTRY OF THE TUBES IN THE TANK IN THE UPPER SIDE OF THE TANK
- INTERNAL AGITATION WITH 10 AGITATORS (4500/5500/6500), 8 AGITATORS (2500/3500) POSITIONED ON 2 DIFFERENT HEIGHTS
- 2 BREAKWATER BULKHEAD (4500/5500/6500), 1 BREAKWATER BULKHEAD (2500/3500), IN STAINLESS STEEL AND WITH AGITATION BY BYPASS RETURN OF THE PUMP
- ELECTRONIC LEVEL INDICATOR (VISIBLE FROM THE SYNCRO ON THE SIDE OF THE MACHINE AND FROM THE MONITOR IN THE CAB)
- INTERNAL WASHING WITH 3 POWERFUL ROTARY NOZZLES
- 600 LT CLEAN WATER TANK
- 2 X HANDWASHING TANKS (RIGHT AND LEFT SIDE)
- 2 OPENING LADDERS (WITH STORAGE COMPARTMENTS) AND INTEGRATED IN THE SIDE COVERS, TO ACCESS THE PLATFORM FROM BOTH SIDES OF THE MACHINE
- LARGE DIMENSION CONTAINER HOLDER
- 2 SIDE COVERS WITH TOTAL COVERAGE AND VERTICAL OPENING
- PUMP “AR 380”
- ERGONOMIC AND COMPACT CENTRALIZED WATER FUNCTION CONTROL BOARD
- 3” SUCTION FILTER WITH 50 MESH CARTRIDGE
- SELF-CLEANING “T6” (1”1/2) LINE FILTER WITH 80 MESH INTERNAL CARTRIDGE
- SINGLE LINE FILTER “T6” (1 “1/2), WITH DOUBLE CARTRIDGE (80/100 MESH)
- QUICK COUPLING FOR FILLING HOSE FROM EXTERNAL SOURCE (2 ”CAM LOCK)
- WATER SYSTEM COMPONENTS WITH FORK HOOK (BALL VALVES, FILTERS AND FITTINGS)
- MIXING TANK (PRE-MIX) OF 35L WITH WASHING CAN SYSTEM, SPRING LOWERING AND CAN STORAGE AREA
- COMPUTER “BRAVO 400S” 7 WATER FUNCTIONS + 9 OIL FUNCTIONS, 5,7” COLOUR DISPLAY
- ELECTRICAL SYSTEM WITH ISOBUS CONNECTION
- “WOLF” FLOW METER WITH FLOW RATE FROM 10 TO 200 L / MIN
- HYDRAULIC FOLDING BOOM IN 5 SECTIONS WITH SIDE CLOSURE
- VARIABLE GEOMETRY (G / VAR), FOR THE INDEPENDENT INCLINE OF EACH BOOM HYDRAULIC CLOSING BOOM, WITH 1/2 “STAINLESS STEEL TUBES (D 21mm) WITH 7 POWER SUPPLIES AND PVC TUBE D 19mm
- 7 WATER SUPPLIES (PVC HOSE D 19 mm)
- MANIFOLD TO BLEED THE RESIDUAL PRESSURE ON SECTION SUPPLY HOSES, FOR REDUCING DRIPPING
- STAINLESS STEEL (1/2’’ THREAD, D 21 mm) JETS HOLDER PIPES – 10 mm Ø HOLES WITH 500 mm DISTANCE
- 4-WAYS COMPACT JET AIR INDUCTION NOZZLE “T-AIXR” 110 04 (RED)
- SPRING END BOOM PROTECTION KIT
- REAR CENTRALIZED PANEL FOR WATER SECTION VALVES AND ELECTRO-HYDRAULIC CONTROLS
- HIGH RESISTANCE TERMINAL JET PROTECTION IN POLYETHYLENE
- 2 BLUE LED WORK LIGHTS ON THE BAR THE BLUE LIGHT IN SPOTS TO VERIFY THE CORRECT OPERATION DURING THE NIGHT
- 2 WHITE LED WORKING LIGHTS MOUNTED ON THE LIFT FOR THE LIGHTING OF WORKING AREAS DURING THE NIGHT
- LED FLASHING LIGHT, COMPACT AND REDUCED DIMENSIONS
- JUG FOR NOZZLE CONTROL, WITH GRADUATED SCALE IN ACCORDANCE WITH ISO / DIS 16119
- HYDRAULIC BLOCK WITH 9-FUNCTION HYDRAULIC SOLENOIDS (WITH COMPENSATED HEAD AND ARRANGED LOAD SENSING L / S FOR TRACTORS WITH VARIABLE FLOW PUMP) 4 BOOM FUNCTIONS, 2 “G / VAR” FUNCTIONS, LIFTING, INCLINATION, LOCKING
- HYDRAULIC HOSES WITH QUICK COUPLING TO THE TRACTOR DISTRIBUTOR (1 DOUBLE EFFECT)
- HYDRAULIC HOSE FOR TRACTOR WITH LOAD SENSING “L / S” DISTRIBUTOR”
- WHEELS 300/95 R46 -12 4 R46- (1720 X 310mm) ALLIANCE PROFILE A-350, 10 HOLES AND WELDED FLANGE SP 15mm
- FIX AXLE WITH SQUARE SHAPE EXTRACTABLE HUBS 100 MM, 10 HOLES M22x1,5
- WITHOUT BRAKES
- ADJUSTABLE TRACK 1570-1870mm (1880-2180m REVERSING WHEEL CENTRE) WITH STANDARD WHEELS AND HUBS
- WIDE 600mm MUDGUARDS, ADJUSTABLE ACCORDING TO THE TRACK
- LED LIGHTS FOR ROAD CIRCULATION (INTEGRATED IN THE MUDGUARDS)
SPRAYMAX (4500-5500-6500)
BDL PLUS L G-VAR (28-30-32-36-40m)
CURRENT TECHNICAL FEATURES:
- SINGLE HIGH RESISTANCE “H” BEAM
- GROUND CLEARANCE 700mm (WITH STANDARD WHEELS)
- SINGLE ARM PARALLELOGRAM LIFTING STROKE 1800 MM (ASSEMBLED ON SELFLUBRICATING BUSHINGS) SHOCK ABSORBER WITH NITROGEN ACCUMULATOR
- HYDRAULIC PARKING FOOT ACTIVATED BY MANUAL LEVER WITH DOUBLE-EFFECT PUMP AND INDEPENDENT TANK
- FIXED DRAWBAR WITH EYE D 40mm ADJUSTABLE HEIGHT
- FRONT CABLE HOLDER WITH MANUAL GAUGE D 100mm INTEGRATED
- nr 2 CHAINS FOR THE CABLES
- HIGH RESISTANCE POLIETHILENE TANKS
- CENTRALIZED AND INSPECTABLE ENTRY OF THE TUBES IN THE TANK IN THE UPPER SIDE OF THE TANK
- INTERNAL AGITATION WITH 10 AGITATORS (4500/5500/6500), 8 AGITATORS (2500/3500) POSITIONED ON 2 DIFFERENT HEIGHTS
- 2 BREAKWATER BULKHEAD (4500/5500/6500), 1 BREAKWATER BULKHEAD (2500/3500), IN STAINLESS STEEL AND WITH AGITATION BY BYPASS RETURN OF THE PUMP
- ELECTRONIC LEVEL INDICATOR (VISIBLE FROM THE SYNCRO ON THE SIDE OF THE MACHINE AND FROM THE MONITOR IN THE CAB)
- INTERNAL WASHING WITH 3 POWERFUL ROTARY NOZZLES
- 600 LT CLEAN WATER TANK
- 2 X HANDWASHING TANKS (RIGHT AND LEFT SIDE)
- 2 OPENING LADDERS (WITH STORAGE COMPARTMENTS) AND INTEGRATED IN THE SIDE COVERS, TO ACCESS THE PLATFORM FROM BOTH SIDES OF THE MACHINE
- LARGE DIMENSION CONTAINER HOLDER
- 2 SIDE COVERS WITH TOTAL COVERAGE AND VERTICAL OPENING
- PUMP “AR 380”
- ERGONOMIC AND COMPACT CENTRALIZED WATER FUNCTION CONTROL BOARD
- 3” SUCTION FILTER WITH 50 MESH CARTRIDGE
- SELF-CLEANING “T6” (1”1/2) LINE FILTER WITH 80 MESH INTERNAL CARTRIDGE
- SINGLE LINE FILTER “T6” (1 “1/2), WITH DOUBLE CARTRIDGE (80/100 MESH)
- QUICK COUPLING FOR FILLING HOSE FROM EXTERNAL SOURCE (2 ”CAM LOCK)
- WATER SYSTEM COMPONENTS WITH FORK HOOK (BALL VALVES, FILTERS AND FITTINGS)
- MIXING TANK (PRE-MIX) OF 35L WITH WASHING CAN SYSTEM, SPRING LOWERING AND CAN STORAGE AREA
- COMPUTER “BRAVO 400S” 7 WATER FUNCTIONS + 9 OIL FUNCTIONS, 5,7” COLOUR DISPLAY
- ELECTRICAL SYSTEM WITH ISOBUS CONNECTION
- “WOLF” FLOW METER WITH FLOW RATE FROM 10 TO 200 L / MIN
- HYDRAULIC FOLDING BOOM IN 7 SECTIONS WITH SIDE CLOSURE
- VARIABLE GEOMETRY (G / VAR), FOR THE INDEPENDENT INCLINE OF EACH BOOM HYDRAULIC CLOSING BOOM, WITH 1/2 “STAINLESS STEEL TUBES (D 21mm) WITH 7 POWER SUPPLIES AND PVC TUBE D 19mm
- 7 WATER SUPPLIES (PVC HOSE D 19 mm)
- MANIFOLD TO BLEED THE RESIDUAL PRESSURE ON SECTION SUPPLY HOSES, FOR REDUCING DRIPPING
- STAINLESS STEEL (1/2’’ THREAD, D 21 mm) JETS HOLDER PIPES – 10 mm Ø HOLES WITH 500 mm DISTANCE
- 4-WAYS COMPACT JET AIR INDUCTION NOZZLE “T-AIXR” 110 04 (RED)
- SPRING END BOOM PROTECTION KIT
- REAR CENTRALIZED PANEL FOR WATER SECTION VALVES AND ELECTRO-HYDRAULIC CONTROLS
- HIGH RESISTANCE TERMINAL JET PROTECTION IN POLYETHYLENE
- 2 BLUE LED WORK LIGHTS ON THE BAR THE BLUE LIGHT IN SPOTS TO VERIFY THE CORRECT OPERATION DURING THE NIGHT
- 2 WHITE LED WORKING LIGHTS MOUNTED ON THE LIFT FOR THE LIGHTING OF WORKING AREAS DURING THE NIGHT
- LED FLASHING LIGHT, COMPACT AND REDUCED DIMENSIONS
- JUG FOR NOZZLE CONTROL, WITH GRADUATED SCALE IN ACCORDANCE WITH ISO / DIS 16119
- HYDRAULIC BLOCK WITH 9-FUNCTION HYDRAULIC SOLENOIDS (WITH COMPENSATED HEAD AND ARRANGED LOAD SENSING L / S FOR TRACTORS WITH VARIABLE FLOW PUMP) 4 BOOM FUNCTIONS, 2 “G / VAR” FUNCTIONS, LIFTING, INCLINATION, LOCKING
- HYDRAULIC HOSES WITH QUICK COUPLING TO THE TRACTOR DISTRIBUTOR (1 DOUBLE EFFECT)
- HYDRAULIC HOSE FOR TRACTOR WITH LOAD SENSING “L / S” DISTRIBUTOR”
- WHEELS 300/95 R46 -12 4 R46- (1720 X 310mm) ALLIANCE PROFILE A-350, 10 HOLES AND WELDED FLANGE SP 15mm
- FIX AXLE WITH SQUARE SHAPE EXTRACTABLE HUBS 100 MM, 10 HOLES M22x1,5
- WITH HYDRAULIC BRAKES (4500/6500)
- ADJUSTABLE TRACK 1570-1870mm (1880-2180m REVERSING WHEEL CENTRE) WITH STANDARD WHEELS AND HUBS
- WIDE 600mm MUDGUARDS, ADJUSTABLE ACCORDING TO THE TRACK
- LED LIGHTS FOR ROAD CIRCULATION (INTEGRATED IN THE MUDGUARDS)
SPRAYMAX (2500-3500 / 4500-5500-6500)
BDU PLUS (18-21-24-27-28-30m)
CURRENT TECHNICAL FEATURES:
- SINGLE HIGH RESISTANCE “H” BEAM
- GROUND CLEARANCE 700mm (WITH STANDARD WHEELS)
- SINGLE ARM PARALLELOGRAM LIFTING STROKE 1800 MM (ASSEMBLED ON SELFLUBRICATING BUSHINGS) SHOCK ABSORBER WITH NITROGEN ACCUMULATOR
- HYDRAULIC PARKING FOOT ACTIVATED BY MANUAL LEVER WITH DOUBLE-EFFECT PUMP AND INDEPENDENT TANK
- FIXED DRAWBAR WITH EYE D 40mm ADJUSTABLE HEIGHT
- FRONT CABLE HOLDER WITH MANUAL GAUGE D 100mm INTEGRATED
- nr 2 CHAINS FOR THE CABLES
- HIGH RESISTANCE POLIETHILENE TANKS
- CENTRALIZED AND INSPECTABLE ENTRY OF THE TUBES IN THE TANK IN THE UPPER SIDE OF THE TANK
- INTERNAL AGITATION WITH 10 AGITATORS (4500/5500/6500), 8 AGITATORS (2500/3500) POSITIONED ON 2 DIFFERENT HEIGHTS
- 2 BREAKWATER BULKHEAD (4500/5500/6500), 1 BREAKWATER BULKHEAD (2500/3500), IN STAINLESS STEEL AND WITH AGITATION BY BYPASS RETURN OF THE PUMP
- ELECTRONIC LEVEL INDICATOR (VISIBLE FROM THE SYNCRO ON THE SIDE OF THE MACHINE AND FROM THE MONITOR IN THE CAB)
- INTERNAL WASHING WITH 3 POWERFUL ROTARY NOZZLES
- 600 LT CLEAN WATER TANK
- 2 X HANDWASHING TANKS (RIGHT AND LEFT SIDE)
- 2 OPENING LADDERS (WITH STORAGE COMPARTMENTS) AND INTEGRATED IN THE SIDE COVERS, TO ACCESS THE PLATFORM FROM BOTH SIDES OF THE MACHINE
- LARGE DIMENSION CONTAINER HOLDER
- 2 SIDE COVERS WITH TOTAL COVERAGE AND VERTICAL OPENING
- PUMP “AR 380”
- ERGONOMIC AND COMPACT CENTRALIZED WATER FUNCTION CONTROL BOARD
- 3” SUCTION FILTER WITH 50 MESH CARTRIDGE
- SELF-CLEANING “T6” (1”1/2) LINE FILTER WITH 80 MESH INTERNAL CARTRIDGE
- SINGLE LINE FILTER “T6” (1 “1/2), WITH DOUBLE CARTRIDGE (80/100 MESH)
- QUICK COUPLING FOR FILLING HOSE FROM EXTERNAL SOURCE (2 ”CAM LOCK)
- WATER SYSTEM COMPONENTS WITH FORK HOOK (BALL VALVES, FILTERS AND FITTINGS)
- MIXING TANK (PRE-MIX) OF 35L WITH WASHING CAN SYSTEM, SPRING LOWERING AND CAN STORAGE AREA
- COMPUTER “BRAVO 400S” 7 WATER FUNCTIONS + 9 OIL FUNCTIONS, 5,7” COLOUR DISPLAY
- ELECTRICAL SYSTEM WITH ISOBUS CONNECTION
- “WOLF” FLOW METER WITH FLOW RATE FROM 10 TO 200 L / MIN
- 7 SECTIONS REAR VERTICAL FOLDING HYDRAULIC BOOM (18m), 9 SECTIONS (20/24m),11 SECTIONS (27/30m)
- SIMULTANEOUS FOLDING FOR THE ARMS (LEFT AND RIGHT TOGETHER), END ARMS (LEFT AND RIGHT TOGETHER)
- VARIABLE GEOMETRY (G / VAR), FOR THE INDEPENDENT INCLINE OF EACH BOOM HYDRAULIC CLOSING BOOM, WITH 1/2 “STAINLESS STEEL TUBES (D 21mm) WITH 7 POWER SUPPLIES AND PVC TUBE D 19mm
- 7 WATER SUPPLIES (PVC HOSE D 19 mm)
- MANIFOLD TO BLEED THE RESIDUAL PRESSURE ON SECTION SUPPLY HOSES, FOR REDUCING DRIPPING
- STAINLESS STEEL (1/2’’ THREAD, D 21 mm) JETS HOLDER PIPES – 10 mm Ø HOLES WITH 500 mm DISTANCE
- 4-WAYS COMPACT JET AIR INDUCTION NOZZLE “T-AIXR” 110 04 (RED)
- SPRING END BOOM PROTECTION KIT
- REAR CENTRALIZED PANEL FOR WATER SECTION VALVES AND ELECTRO-HYDRAULIC CONTROLS
- HIGH RESISTANCE TERMINAL JET PROTECTION IN POLYETHYLENE
- 2 BLUE LED WORK LIGHTS ON THE BAR THE BLUE LIGHT IN SPOTS TO VERIFY THE CORRECT OPERATION DURING THE NIGHT
- 2 WHITE LED WORKING LIGHTS MOUNTED ON THE LIFT FOR THE LIGHTING OF WORKING AREAS DURING THE NIGHT
- LED FLASHING LIGHT, COMPACT AND REDUCED DIMENSIONS
- JUG FOR NOZZLE CONTROL, WITH GRADUATED SCALE IN ACCORDANCE WITH ISO / DIS 16119
- HYDRAULIC BLOCK WITH 9-FUNCTION HYDRAULIC SOLENOIDS (WITH COMPENSATED HEAD AND ARRANGED LOAD SENSING L / S FOR TRACTORS WITH VARIABLE FLOW PUMP) 4 BOOM FUNCTIONS, 2 “G / VAR” FUNCTIONS, LIFTING, INCLINATION, LOCKING
- HYDRAULIC HOSES WITH QUICK COUPLING TO THE TRACTOR DISTRIBUTOR (1 DOUBLE EFFECT)
- HYDRAULIC HOSE FOR TRACTOR WITH LOAD SENSING “L / S” DISTRIBUTOR”
- WHEELS 300/95 R46 -12 4 R46- (1720 X 310mm) ALLIANCE PROFILE A-350, 10 HOLES AND WELDED FLANGE SP 15mm
- FIX AXLE WITH SQUARE SHAPE EXTRACTABLE HUBS 100 MM, 10 HOLES M22x1,5
- WITHOUT BRAKES (2500/3500)
- WITH HYDRAULIC BRAKES (4500/6500)
- ADJUSTABLE TRACK 1500-1800mm (1800-2100m REVERSING WHEEL CENTRE) 2500/3500 WITH STANDARD WHEELS AND HUBS
- ADJUSTABLE TRACK 1570-1870mm (1880-2180m REVERSING WHEEL CENTRE) 4500/5500/6500 WITH STANDARD WHEELS AND HUBS
- WIDE 600mm MUDGUARDS, ADJUSTABLE ACCORDING TO THE TRACK
- LED LIGHTS FOR ROAD CIRCULATION (INTEGRATED IN THE MUDGUARDS)
BDL & BDX Range
THE ELIOS TRAILED SPRAYER RANGE
2200,2700, 3000 litre tank.
The ELIOS range is a small & compact, economically priced trailed sprayer, with tank sizes of 2200, 2700 & 3000 litres. The BDL hydraulic folding boom is available 18m to 24m with triple jets mounted on stainless steel boom lines, the boom frame totally encloses the nozzle body giving total nozzle protection and pigtail springs “kick” the boom ends up if the operator makes a mistake. The 18m boom folds out 10m and then to 18m. The 20/21/24m booms fold to 12m and then to full width. Hydraulic boom tilt for working on side sloping ground is optional.
Boom “airo” suspension, a unique system that carries the whole weight of the boom on air cushions to give an unequalled boom ride (see pictures in scroll bar) All BDL booms can be offered with independent folding and full boom geometry, on request.
ELIOS sprayers are fitted with chemical mixer tank, container washers, in field tank cleaning system, self filler hose. Computer rate controller, Computer steering drawbar, Foam marker, Line purge, Boom air suspension, Boom geometry and independent fold are optional. There are various drawbar options which we can discuss with you.
Key Benefits:
Very strong and well engineered
Folds to within 2.5m for transport
Easy to attach to tractor
Not too heavy
Simple to Use
Can be kept very simple or you can add many options
Low Centre of gravity
- Total Emptying Tank
- Strong Painted Chassis and Frame
- Basic Tracking Drawbar with disc brake damper (see options)
- Hydraulic Brakes
- Full Rinse System
- Boom End Jet Protection Panels
- Hydraulic Lift Mast Height Adjustment
- Tri Jets
- Stainless Steel Lines
- Line Filters
- Road Lighting Kit
- Requires 2 Spool Valves (1 spool with electro Hydraulics)
- 13.6 R38 Wheels
- Bravo 180 Spray Computer
- Bravo 400 Spray Computer with Full GPS
- Extra Heavy Duty Tracking Drawbar
- Crabbing Ram for Heavy Duty Tacking Drawbar
- Fixed Drawbar
- Hyd Boom Tilt
- Electro Hyd Boom Tilt
- Boom Variable Geometry (includes electro hydraulics for all hydraulic functions on the sprayer – sprayer will only require 1 tractor spool valve)
- Airo Boom Suspension (for 18 to 21m boom)
- Airo Boom Suspension (for 24m boom)
- Foam Marker
- GPS Guidance System (Mapping with colour screen)
- Line Purge Boom Recirculation System
- Bubble jets per metre
- Tilt Sensor for GPS
Mudguards
Wheels: (instead of standard for Compact & Compact Plus Ranges)
9.5 R44
16.9 R38
IRIS TRAILER SPRAYER RANGE
The IRIS range is small & compact, economically priced trailed sprayer, with tank sizes of 1700, 2200 litres. There are 2 boom options. The BDX or the BDL.
Both booms are fully hydraulic. The BDX is a very neat and compact boom which folds across the back of the machine. It is available at 12m or 15m. It features full nozzle protection, a break back and stainless steel boom lines. The BDL hydraulic folding boom is available at 18m or 20m with single jets mounted on stainless steel boom lines, the boom frame totally encloses the nozzle body giving total nozzle protection. The 18m boom folds out 10m and then to 18m. The 20m booms fold to 12m and then to full width. Hydraulic boom tilt for working on side sloping ground is optional.
Boom “airo” suspension, a unique system that carries the whole weight of the boom on air cushions to give an unequalled boom ride (see pictures in scroll bar) All BDL booms can be offered with independent folding and full boom geometry, on request.
IRIS sprayers are fitted with chemical mixer tank, tracking drawbar & a self filler hose. Computer rate controller, Foam marker, Boom air suspension.
- Total Emptying Tank
- Strong Painted Chassis & Frame
- Tracking Drawbar (Standard)
- 9.5 R44 Wheels
- Stainless Steel Lines
- Road Lighting Kit
- 5 Section Electric Controls
- Self Levelling Boom
- Hydraulic Height Adjustment
- Hydraulic Rear Fold Boom
- Requires 2 Spool Valves
- 9.5 R 36 Wheels
- Fixed drawbar
- BRAVO 180 Spray Computer
- 200lt Rinse Tank
- Boom protection Springs
- Boom End Jet Protection
- Hyd Boom Tilt
- Electro Hyd Boom Tilt
- Airo Boom Suspension
- Foam Marker
- Line Purge System
- Bubble jets per metre
Wheels: (in lieu of standard)
9.5 R 44
16.9 R38
VIEW THE FULL BARGAM RANGE
